 負載表 |
 |
■1000 RPM~165 RPM(6:1) 1200 RPM~200 RPM (6:1)
| TYPE |
RATIO RANGE |
Allowable Output Torque
(kgw)at input rpm |
Approx
Weight
kg |
| Up to 1500 |
1500~1800 |
| D002A(4M) |
1/1.4~1/8.4 |
0.15~0.3 |
0.13~0.25 |
5(13) |
| D002F(4M) |
6(14) |
| D004A(4M) |
0.3~0.6 |
0.25~0.5 |
12(24) |
| D004F(4M) |
13(25) |
| D007A(4M) |
0.6~1.2 |
0.5~1 |
18(33) |
| D007F(4M) |
20(35) |
| D015A(4M) |
1.2~2.4 |
1~2 |
32(55) |
| D015F(4M) |
35(58) |
| D022A(4M) |
1.8~3.6 |
1.5~3 |
60(86) |
| D022F(4M) |
65(91) |
| D037A(4M) |
3~6 |
2.5~5 |
64(103) |
| D037F(4M) |
69(108) |
| D055A(4M) |
4.5~9 |
3.8~7.5 |
116(178) |
| D055F(4M) |
126(188) |
| D075A(4M) |
6~12 |
5~10 |
116(191) |
| D075F(4M) |
126(201) |
|
■400 RPM~66 RPM(6:1) 480 RPM~80 RPM (6:1)
| TYPE |
RATIO RANGE |
Allowable Output Torque
(kgw)at input rpm |
Approx
Weight
kg |
| Up to 1500 |
1500~1800 |

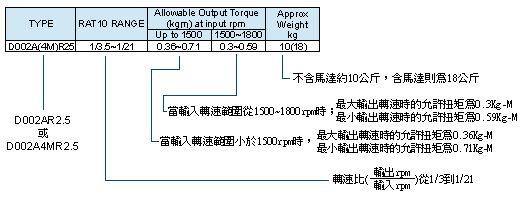

| D002A(4M)R2.5 |
1/3.5~1/21 |
0.36~0.71 |
0.3~0.59 |
10(18) |
| D004A(4M)R2.5 |
0.71~1.43 |
0.59~1.19 |
17(28) |
| D007A(4M)R2.5 |
1.43~2.85 |
1.19~2.38 |
23(38) |
| D015A(4M)R2.5 |
2.85~5.7 |
2.38~4.75 |
40(63) |
| D022A(4M)R2.5 |
4.28~8.55 |
3.56~7.13 |
71(97) |
| D037A(4M)R2.5 |
7.13~14.3 |
5.94~11.9 |
75(115) |
| D055A(4M)R2.5 |
10.7~21.4 |
8.9~17.8 |
190(225) |
| D075A(4M)R2.5 |
14.3~28.5 |
11.9~23.8 |
190(265) |
|
■200 RPM~33 RPM(6:1) 240 RPM~40 RPM (6:1)
| TYPE |
RATIO RANGE |
Allowable Output Torque
(kgw)at input rpm |
Approx
Weight
kg |
| Up to 1500 |
1500~1800 |
| D002A(4M)R5 |
1/7~1/42 |
0.71~1.43 |
0.59~1.19 |
10(18) |
| D004A(4M)R5 |
1.43~2.85 |
1.19~2.38 |
17(28) |
| D007A(4M)R5 |
2.85~5.7 |
2.38~4.75 |
23(38) |
| D015A(4M)R5 |
5.7~11.4 |
4.75~9.5 |
40(63) |
| D022A(4M)R5 |
8.5~17.1 |
7.13~14.3 |
71(97) |
| D037A(4M)R5 |
14.3~28.5 |
11.9~23.8 |
75(115) |
| D055A(4M)R5 |
21.4~42.8 |
17.8~35.6 |
190(225) |
| D075A(4M)R5 |
28.5~57 |
23.8~47.5 |
190(265) |
|
| |
| 選用計算 |
■如何選用無段變速機
1.扭力或馬力傳動；扭力須多少Kg-M，馬力須多少Hp
2.使用轉速之範圍
3.1天內之平均運轉時間
4.負荷之種類 |
| 負載條件 |
平均每日使用時間 |
| 8小時 |
8小時~16小時 |
16小時~24小時 |
| 均勻負載 |
1.0 |
1.1 |
1.2 |
輕衝擊，間歇運轉
反轉操作，中度慣性 |
1.3 |
1.4 |
1.5 |
重擊，間歇運轉
反轉操作，重度慣性 |
1.7 |
1.9 |
2.0 |
|
■扭力計算值
T ：扭力(Kg-M)
KW：功率(仟瓦)
N ：定扭力時最高回轉數或定馬力時最低回轉數(rpm) |
■容量選擇注意事項
A. 無段變速機出力軸之容許扭力由無段變速機本身之磨擦帶動及馬達本身之扭力兩者共同來決定。
B.無段變速機容許入力：馬達直結型，在無段變速機出力軸轉速變化下，馬達負荷也會隨之改變，如下表：
C.入力軸回轉數：入力軸回轉數或馬達以不超過1800RPM為佳。 |
