尺寸 |
2.5 | 5 | 10 | 20 | |
| 靜磨擦轉矩 kgm | 2.2 | 4.5 | 9 | 17 | |
| 勵磁電壓 DC-V | 24 | 24 | 24 | 24 | |
| 容量 (在 20 ºC) W | 20 | 25 | 35 | 45 | |
| 鑿孔軸 | 貫孔 dH7 | 19 | 24 | 28 | 38 |
| 鍵槽 bxt | 5x2 | 7x3 | 10x3.5 | 10x3.5 | |

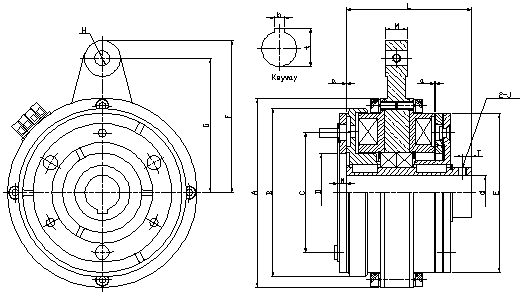

| 直徑 | A | 125 | 150 | 190 | 230 |
| B | 106 | 133 | 169 | 212 | |
| C | 76 | 95 | 120 | 158 | |
| D | 54 | 67 | 89 | 108 | |
| E | 108 | 133 | 168 | 208 | |
| F | 105 | 120 | 153 | 180 | |
| G | 90 | 105 | 135 | 160 | |
| H | 10 | 12 | 15 | 18 | |
| J | M5 | M6 | M8 | M8 | |
| K | M5 | M6 | M8 | M10 | |
| 長度 | L | 97 | 110 | 125 | 145 |
| M | 17 | 20 | 22 | 24 | |
| N | 8.5 | 10.5 | 13 | 16.5 | |
| T | 6 | 6 | 9 | 10 | |
空氣間隙 a |
0.2 | 0.3 | 0.3 | 0.4 | |
重量 kg |
3.8 | 4.7 | 10.2 | 18.5 | |
